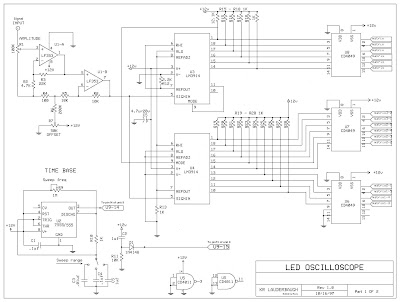

Here I post the original schematics of LED oscilloscope, there are a few mistakes regarding to some ICs +/- connections, and also at the connections from U3, U4 toward U6 and U8 which they not make any sense!
I did not had time to check these mistakes, so please look for your self before you connect any power source to the circuit. If it is too confusing, you can always email or PM me here, I will try to help ASAP.
U1 LF353 (op amp) didn't work for me, I had to change it with some other op amp ICs, like LM1458/1558 or LM158/258/358 which all are Pin compatible with LF353.
Edit: (20-05-2012)
Finally I find some time to fix all the mistakes at the schematics, and I hope that all are OK now. If you
find a new mistake please send me a message so I could correct it. Thank you for your attentions.
Remember that, the original schematics are for 9 x (5x7 LED module) 15 vertical (rows) x 21 horizontal
(columns) LEDs, where my scop has 6 x (8x8 LED modules) 16 vertical (columns) x 24 horizontal (rows)
LEDs (as this schematic are now)
I did not had time to check these mistakes, so please look for your self before you connect any power source to the circuit. If it is too confusing, you can always email or PM me here, I will try to help ASAP.
U1 LF353 (op amp) didn't work for me, I had to change it with some other op amp ICs, like LM1458/1558 or LM158/258/358 which all are Pin compatible with LF353.
Edit: (20-05-2012)
Finally I find some time to fix all the mistakes at the schematics, and I hope that all are OK now. If you
find a new mistake please send me a message so I could correct it. Thank you for your attentions.
Remember that, the original schematics are for 9 x (5x7 LED module) 15 vertical (rows) x 21 horizontal
(columns) LEDs, where my scop has 6 x (8x8 LED modules) 16 vertical (columns) x 24 horizontal (rows)
LEDs (as this schematic are now)
